DECORATE GRP
Embossed FRP Panel

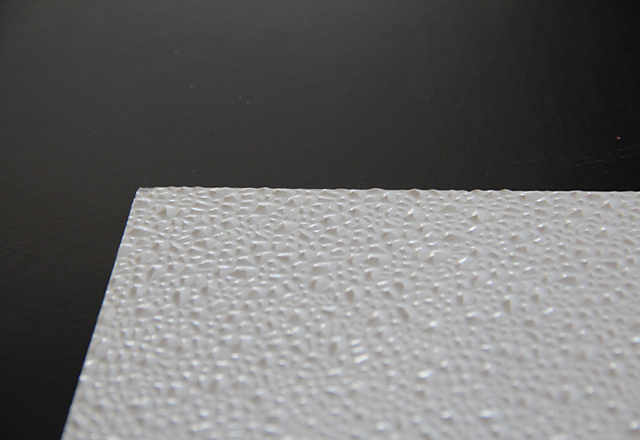

Jinyi Embossed High Glossy Fiberglass FRP Panel
component: polyester resin, well-balanced glass content, gelcoat layer
Quality assured by: continuous manufacturing process and constant process control
Thickness: 0.8-3.0mm
Maximum Width: 2600mm
Length: no limits,cut in sheet or roll
Surface: embossed
Colors: RAL- scale or customer-specific shades
Specifications
FRP wall panel:
*Mold and mildew resistant
*Easy to stall
*Cleanable and durable
*Superior flexibility
Strength:
Specifications | units | Cited Thickness | ||||
1.0mm | 1.5mm | 2.0mm | 2.5mm | 3.0mm | ||
Weight | Kg/m2 | 1.6 | 2 | 2.6 | 3.2 | 4.0 |
Glass content | % | 19 | 25 | 29 | 30 | 30 |
Tensile strength | Mpa | 60 | 80 | 92 | 95 | 97 |
Elongation at break | % | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
Elastic modulus | Gpa | 5.5 | 7 | 7.3 | 7.6 | 7.8 |
Izod impact strength | KJ/m2 | 45 | 55 | 70 | 80 | 95 |
Applications:
1. Food processing areas
2. restaurant
3. bathrooms
4. storage rooms
5. schools
6. hospitals
7. many other applications
8. where sanitation is required
